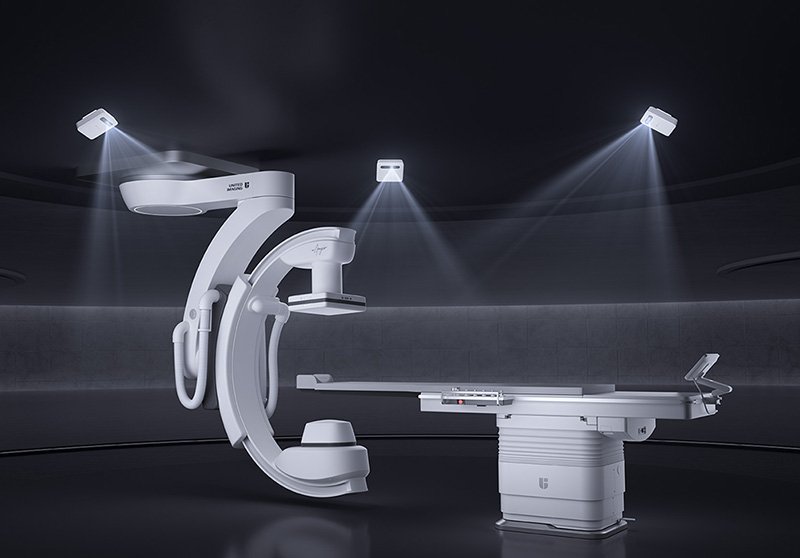

United Imaging Intelligent Angiography System uAngio® AVIVA CX
Introduction:
Introducing United Imaging's uAngio AVIVA CX, intelligent ceiling-mounted angiography system designed to be more than just a tool—it's your smart assistant in the operation room. With intelligent voice-control, vision, robotics, and imaging, uAngio AVIVA CX hears, sees, moves with exceptional flexibility, and thinks' revolutionizing how interventional procedures are performed. This groundbreaking innovation paves the way for a new paradigm in future procedures.
参考价：
US$700,000–1,200,000 / unit
Overview
· Intelligent ceiling-mounted DSA / interventional X-ray system
· 8-axis robotic C-arm
· Intelligent voice control with uLingo
· 3D intelligent vision and digital-twin environment with uSpace
· uVera IQ intelligent imaging technology
· 30 × 40 cm flat-panel detector
· ≤154 μm pixel size
· ≥3.25 lp/mm spatial resolution
· 28 / 48 / 100 kW X-ray tube power options
· Up to 270° Z-axis rotation
· Maximum transverse movement of 2,360 mm
· Maximum longitudinal movement of 6,350 mm
· Supports cardiology, neurointervention and interventional radiology
· FDA 510(k), CE and China NMPA certified/cleared (United Imaging)
Specifications
| Specification | uAngio AVIVA CX |
| Product Type | Intelligent Angiography / DSA System |
| Manufacturer | United Imaging Healthcare |
| Model | uAngio AVIVA CX |
| System Type | Ceiling-mounted Robotic C-arm |
| Robotic Axes | 8 axes |
| Motion Coverage | Up to 6.35 × 2.36 m |
| Z Rotation | ±135° |
| RAO / LAO | 180° / 150° |
| Transverse Movement | Max. 2360 mm |
| Longitudinal Movement | Max. 6350 mm |
| Detector Size | 30 × 40 cm |
| Pixel Size | ≤154 μm |
| Spatial Resolution | ≥3.25 lp/mm |
| Digitization | 16 bit |
| DQE | 77% |
| X-ray Tube Focal Spots | 0.4 / 0.6 / 1.0 mm |
| X-ray Tube Power | 28 / 48 / 100 kW |
| Maximum Anode Heat Storage | 3.8 MHU |
| Maximum Assembly Heat Storage | 6.69 MHU |
| Maximum Anode Heat Dissipation | 5500 W |
| Table Length | 3228.5 mm |
| Maximum Table Load | 340 kg |
| CPR Loading | ≥60 kg at any position |
| Imaging Technology | uVera IQ |
| Intelligent Vision | uSpace |
| Voice Control | uLingo |
| Clinical Applications | Cardiology, Neurointervention, Interventional Radiology |
Product Details

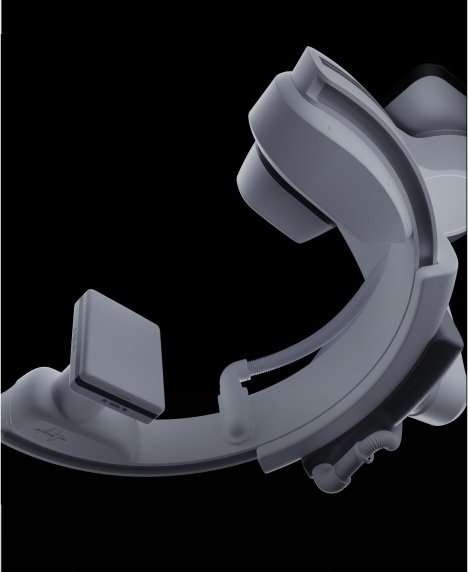

1. 8-Axis Robotic C-arm
The uAngio AVIVA CX uses an 8-axis ceiling-mounted robotic system. Its additional lateral movement allows the C-arm to reach the patient from different directions without moving the operating table, providing greater flexibility during complex procedures.
2. uLingo Intelligent Voice Control
The uLingo voice-control system uses MEMS microphone arrays and neural-network-based noise suppression. Operators can control system movement, image acquisition, image selection and other functions through voice commands, enabling hands-free operation.

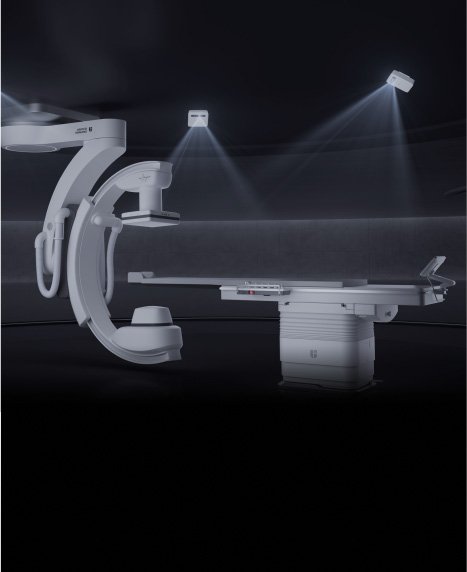

3. uSpace 3D Intelligent Vision
Three sensors mounted above the operating room capture real-time images and reconstruct a 3D model of the patient, equipment and room. The resulting uSpace digital twin supports automatic positioning, trajectory planning, isocenter tracking, SID adjustment and exposure-parameter optimization.
4. uVera IQ Imaging
uVera IQ combines image-processing and denoising technologies to improve image quality while controlling radiation dose. United Imaging reports that its technology can reduce radiation exposure while maintaining visualization of fine vascular structures.
5. High-Resolution Detector
The system uses a 30 × 40 cm flat-panel detector with ≤154 μm pixel size and ≥3.25 lp/mm spatial resolution, supporting detailed visualization of vessels, stents and other anatomical structures.
6. Flexible Clinical Applications
The uAngio AVIVA CX supports:
· Interventional Cardiology
· Neurointervention
· Interventional Radiology
· Peripheral vascular intervention
· Oncology intervention
· Complex vascular procedures
Advanced applications include coronary roadmap, multi-modality fusion, DSA, Roadmap and needle-guidance functions. Availability varies by market and regulatory approval.
Related Products
-

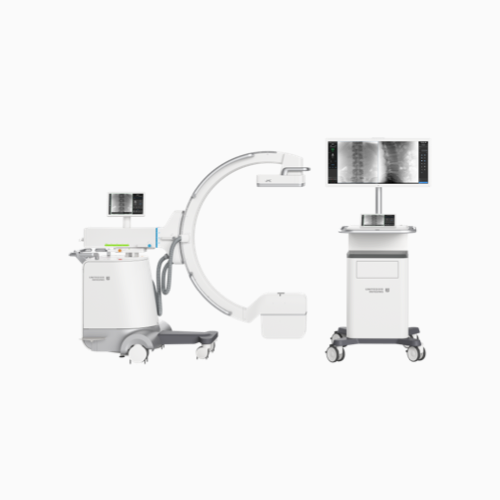

United Imaging Low Dose CMOS Mobile C-arm uMC 560iUnited Imaging -

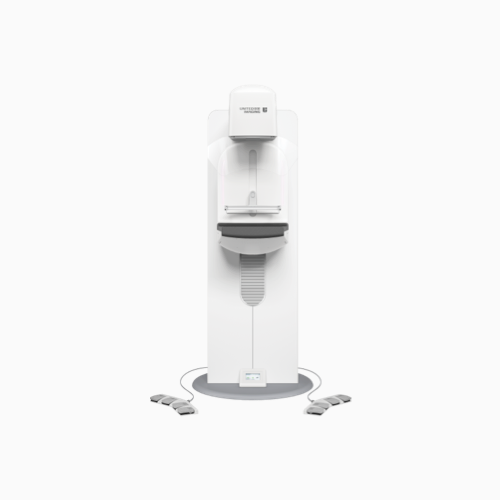

United Imaging Low Dose 3D Mammography System uMammo 890iUnited Imaging -
United Imaging Intelligent Angiography System uAngio® AVIVA CXUnited Imaging -
United Imaging Next Generation Remote-Vision Mobile DR uDR 380i ProUnited Imaging -
United Imaging Automatic Floor Mounted DR uDR 596iUnited Imaging -

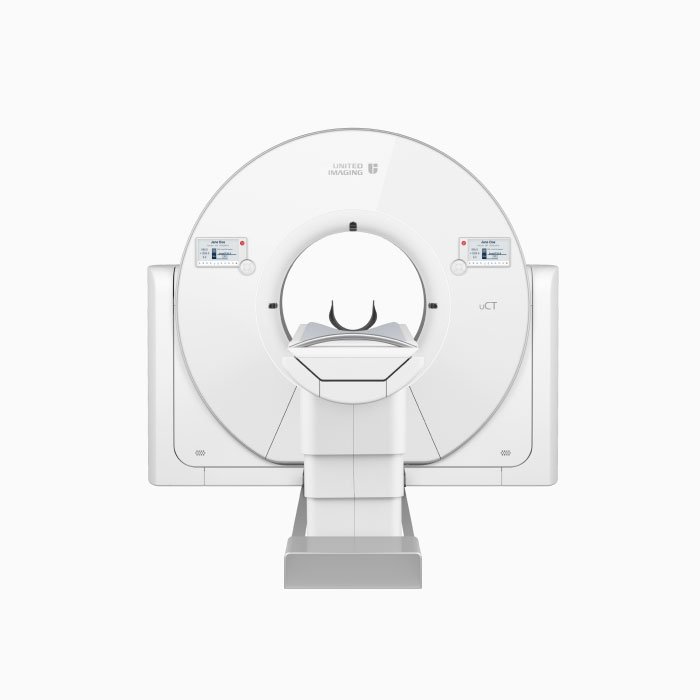

United Imaging uCT 960+United Imaging -

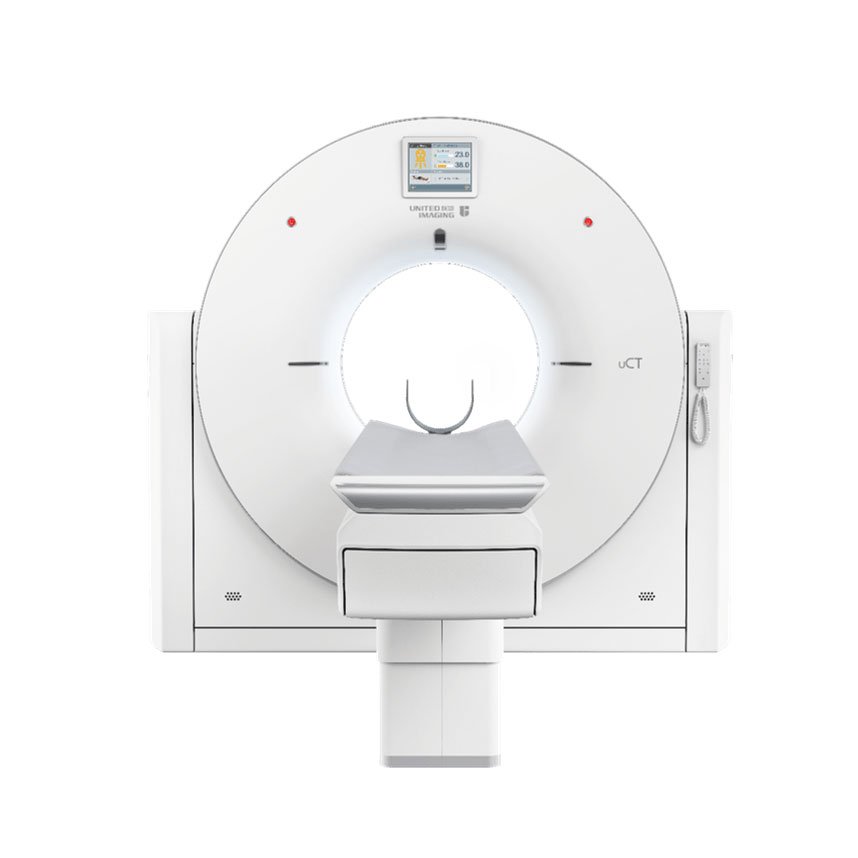

United Imaging 40-slice CT uCT 520United Imaging -
United Imaging uAIFI Empowered 1.5T MR uMR 680United Imaging -
United Imaging The World's First Ultra-wide-bore 3T MRI uMR OmegaUnited Imaging -
United Imaging World's First Whole-body UHF 5T MR uMR JupiterUnited Imaging -

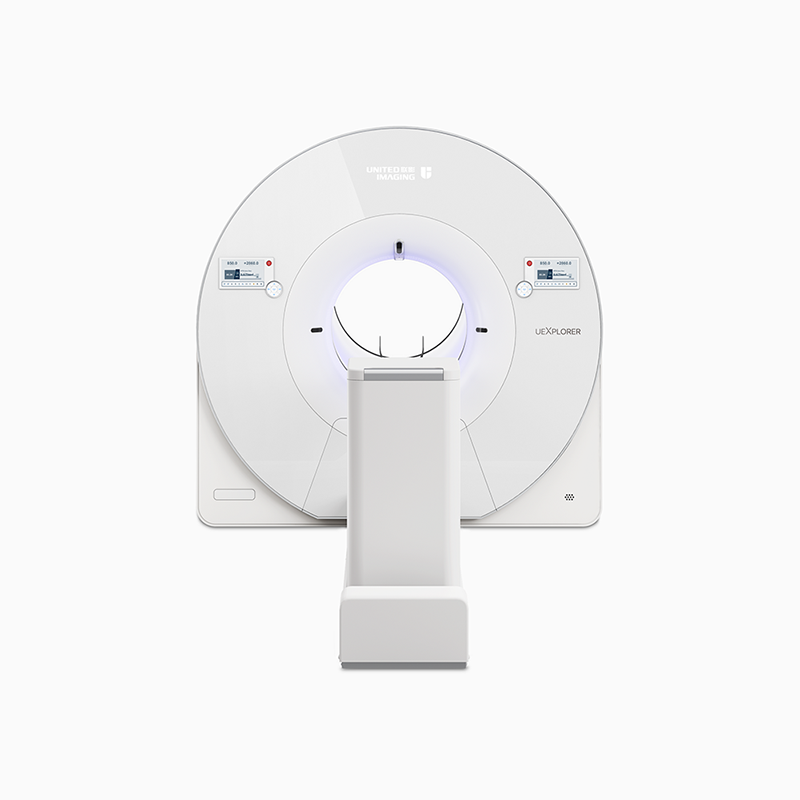

United Imaging The World's First Total-Body PET/CT uEXPLORERUnited Imaging -

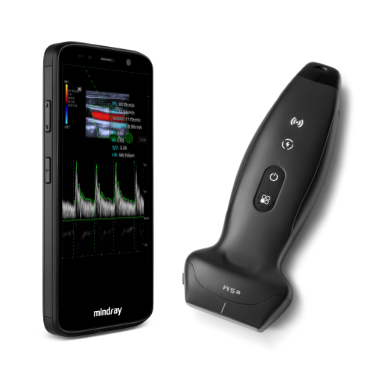

Mindray TE Air e5M Wireless handheld ultrasound systemMindray -

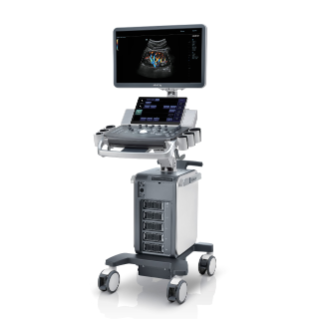

Mindray Cardiovascular ultrasound System DC-80AMindray -

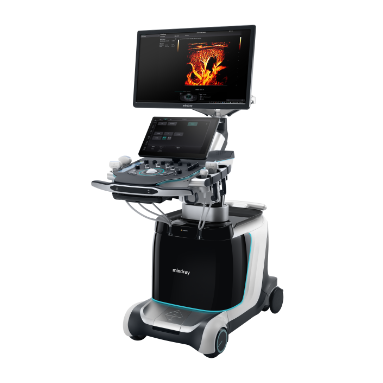

Mindray Premium Ultrasound System for Radiology Resona A20Mindray
