United Imaging World's First Whole-body UHF 5T MR uMR Jupiter
Introduction:
Whole - body "microscope - level" high - definition imaging; Multi - core imaging and ultra - high - resolution spectroscopy imaging; Seamless integration of "basic research - clinical research - medical translation"
参考价：
US$1,000,000–1,500,000 / unit
Overview
· 5.0T ultra-high-field MRI
· Whole-body clinical and research applications
· 60 cm bore
· Up to 50 cm FOV in X/Y directions
· 120 mT/m maximum gradient amplitude
· 200 T/m/s maximum slew rate
· 8-channel parallel transmit volume coil
· 96 independent RF receiver channels
· Advanced active shimming
· High-density RF coil suite
· Head, Head & Neck, SuperFlex, Knee and Spine coils
· Whole-body imaging from head to toe

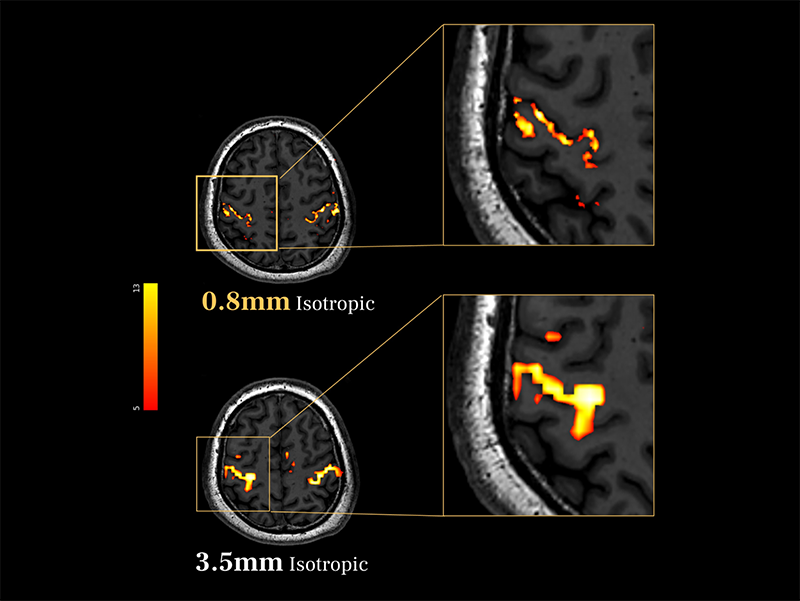

· Advanced neurological imaging
· High-resolution cardiac imaging

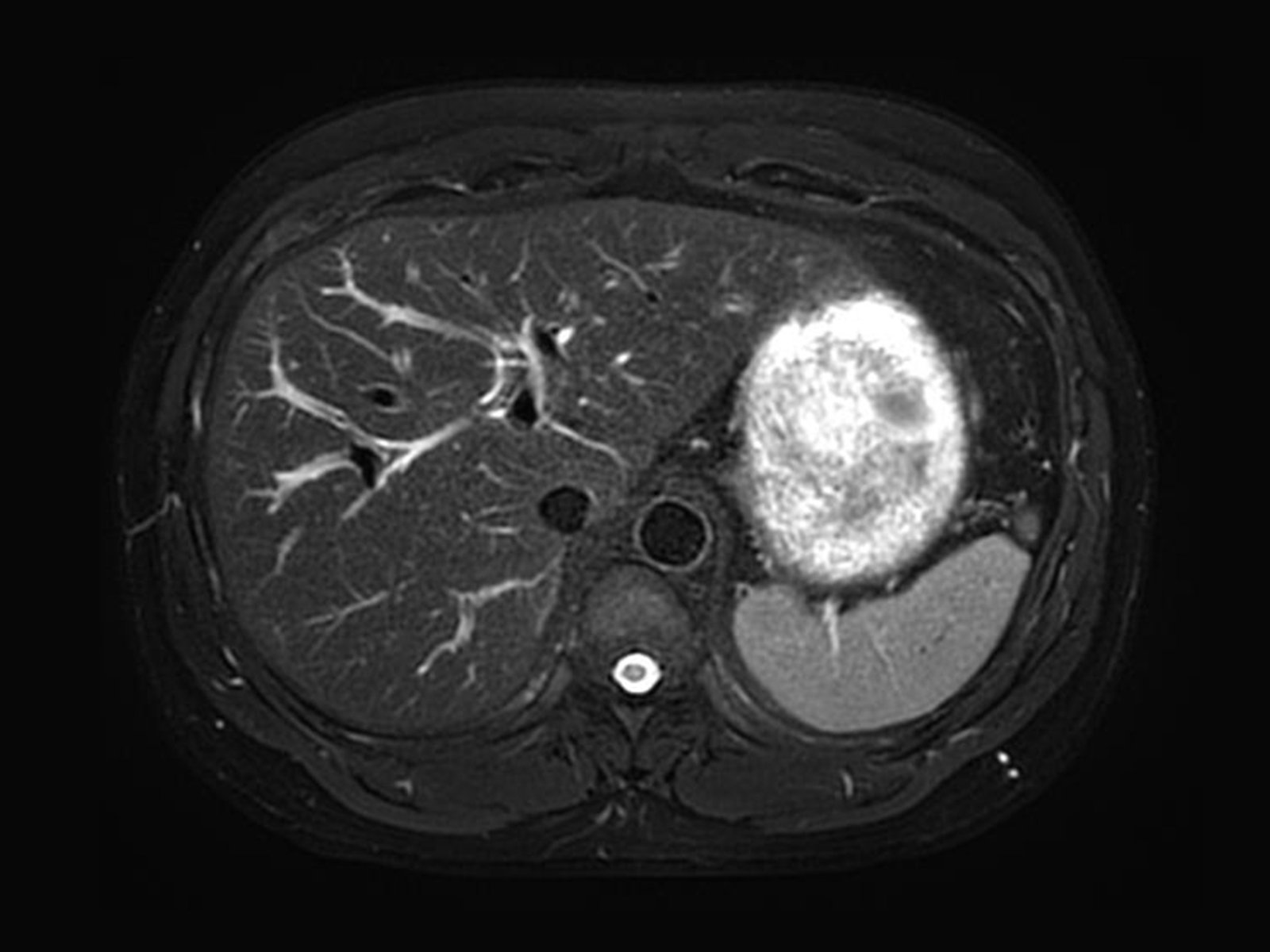

· High-resolution abdominal and prostate imaging

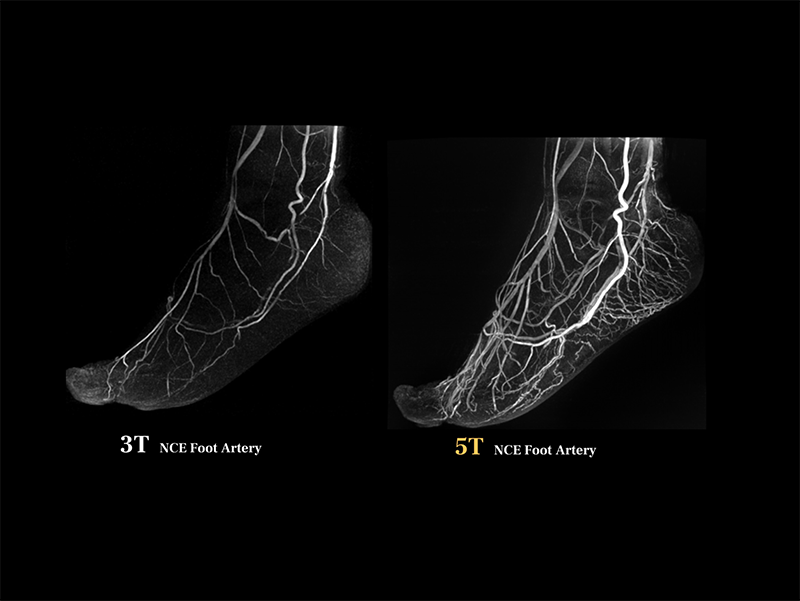

· Non-contrast-enhanced vascular imaging
· Open ADEPT MR research platform
· Designed for installation in a space comparable to a conventional 3T MRI room
Specifications
| Specification | uMR Jupiter |
| Product Type | Magnetic Resonance Imaging (MRI) System |
| Manufacturer | United Imaging Healthcare |
| Model | uMR Jupiter |
| Magnetic Field Strength | 5.0 Tesla |
| Bore Size | 60 cm |
| Maximum FOV | 50 cm in X/Y directions |
| Maximum Gradient Amplitude | 120 mT/m |
| Maximum Slew Rate | 200 T/m/s |
| Shimming | Active Shimming |
| Parallel Transmit Channels | 8 |
| Independent RF Receiver Channels | 96 |
| Scanning Room Area, Minimum | 25.12 m² |
| Control Room Area, Minimum | 12 m² |
| RF Coil Types | Head, Head & Neck, SuperFlex, Knee, Spine |
| Imaging Coverage | Whole-body |
| Clinical Applications | Neurology, Cardiology, Abdomen, Prostate, Orthopedics, Angiography |
| Research Platform | ADEPT |
| MRI Classification | Ultra-High-Field MRI |
Product Details
1. 5T Superconducting Magnet
The uMR Jupiter uses a newly designed 5T superconducting magnet specifically developed for whole-body ultra-high-field MRI.
Its magnet design helps control the 5 Gauss fringe-field range to a level comparable to conventional 3T MRI systems, improving installation flexibility.
2. 8-Channel Parallel Transmit RF System
The system features an independently controlled 8-channel parallel transmit volume coil.
Dynamic RF calibration helps compensate for B1 field inhomogeneity at 5T, supporting more uniform excitation across the body and enabling whole-body UHF MRI applications.
3. High-Performance Gradient System
The uMR Jupiter provides:
· 120 mT/m maximum gradient amplitude
· 200 T/m/s maximum slew rate
This high-performance gradient system supports high-resolution diffusion, neurological, musculoskeletal and vascular imaging.

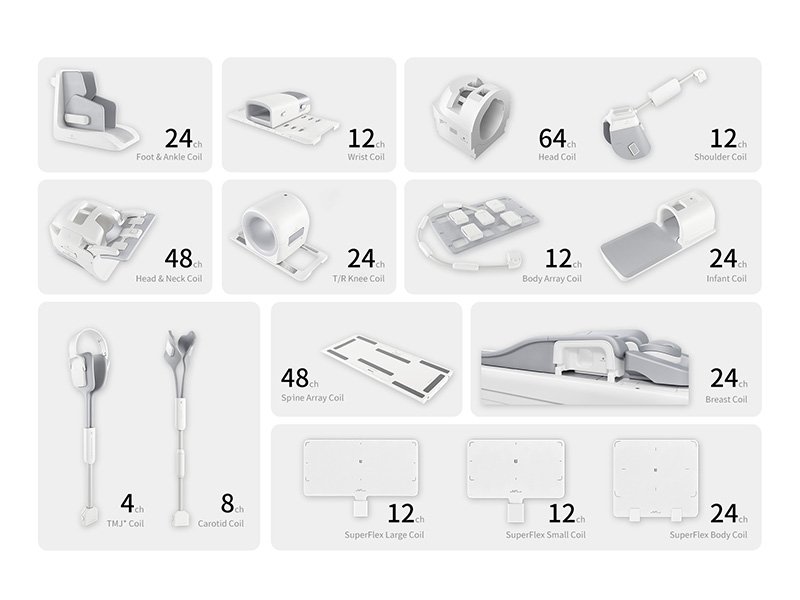

4. High-Density RF Coils
United Imaging provides a dedicated high-density RF coil portfolio, including:
· Head Coil
· Head & Neck Coil

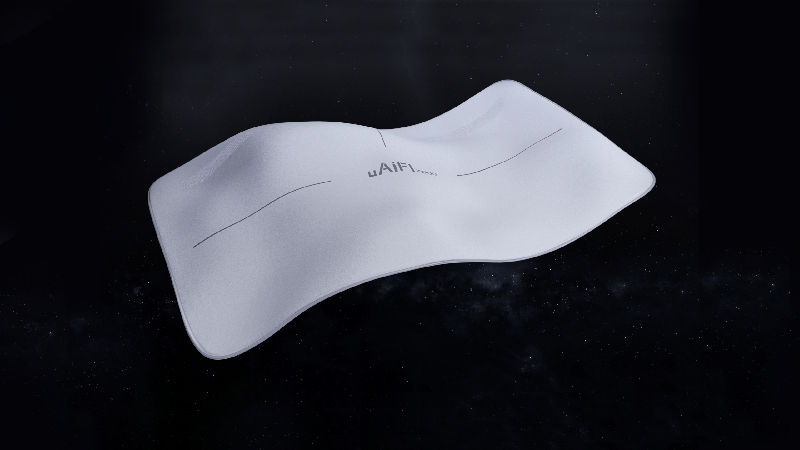

· SuperFlex Coil
· Knee Coil
· Spine Coil
These coils are designed to support imaging across different anatomical regions while maintaining high signal quality.

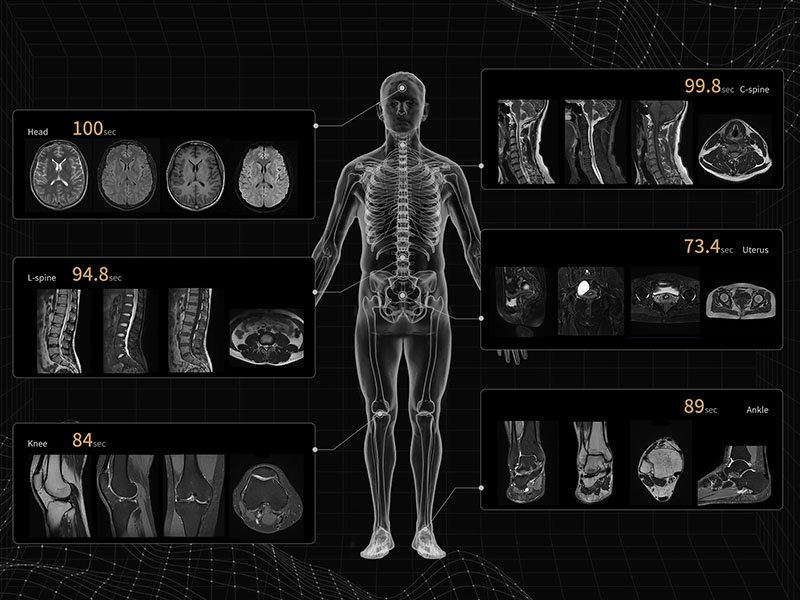

5. Whole-Body High-Resolution Imaging

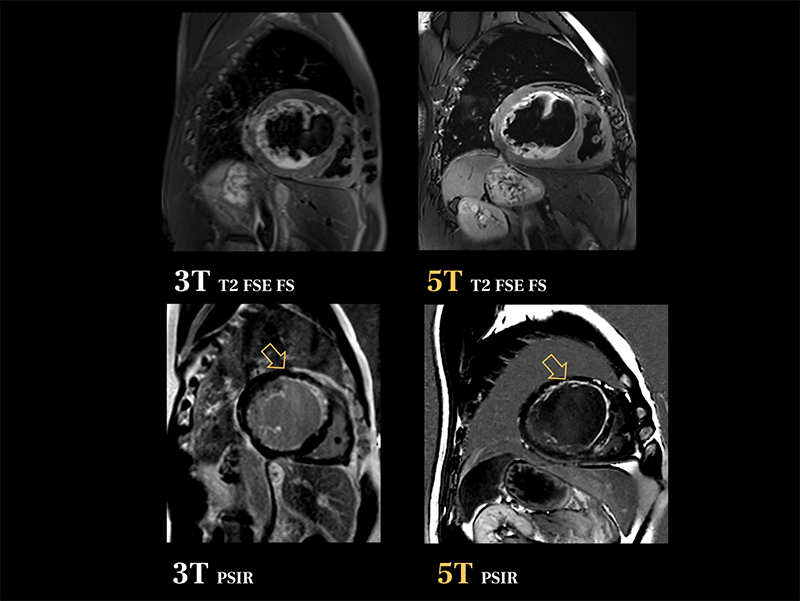

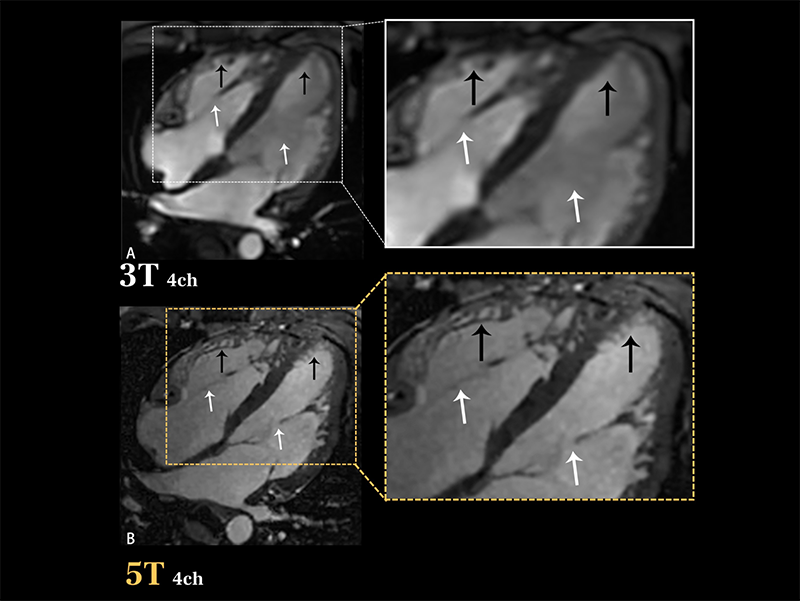

The higher field strength of 5T provides increased signal-to-noise potential compared with conventional 3T MRI.

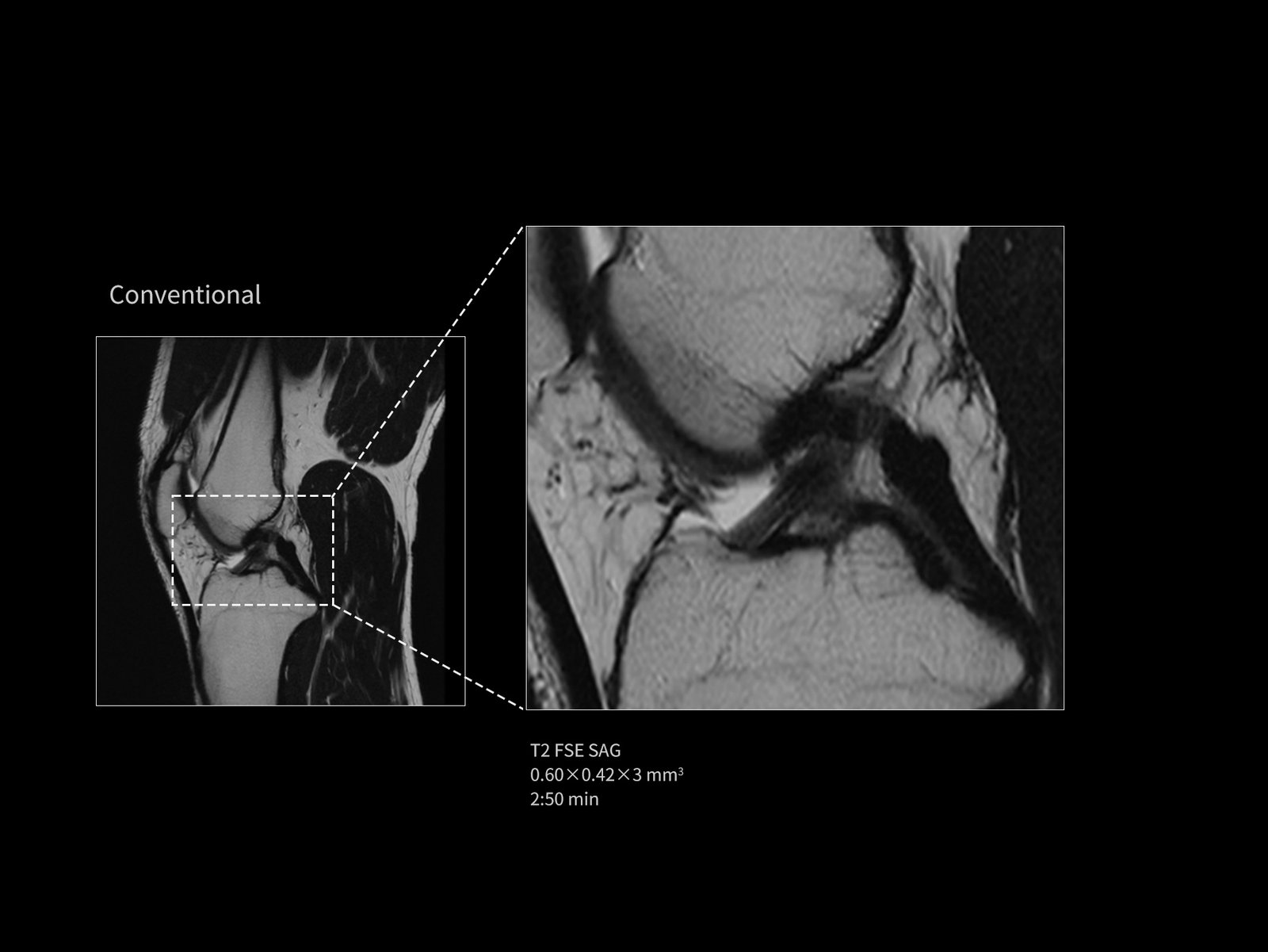

United Imaging demonstrates high-resolution applications covering the brain, heart, spine, abdomen, prostate, shoulder, knee, wrist, ankle and peripheral vessels.
6. Advanced Clinical Applications
The uMR Jupiter is designed for both clinical and research applications, including:
· Neurological MRI
· Cardiac MRI
· Abdominal MRI
· Prostate MRI
· Musculoskeletal MRI
· Vascular imaging
· Whole-body MRI
The system can provide high-resolution visualization of small anatomical structures, including peripheral vessels and fine musculoskeletal structures.
7. Clinical Research and Precision Medicine
The uMR Jupiter is also positioned as a platform for clinical research and precision medicine.
Its 5T field strength can support advanced imaging and multi-parametric research, while the system's open ADEPT platform allows researchers to develop and evaluate new MR sequences and applications.
8. ADEPT Open Research Platform
ADEPT is United Imaging's open MR research and development platform.
It provides researchers with greater control over MR development and supports cross-field-strength and cross-platform research, helping new MRI techniques move from research toward clinical applications.
