United Imaging Low Dose CMOS Mobile C-arm uMC 560i
Introduction:
uMC 560i adopts high performance monocrystalline silicon flat-panel detector to achieve high-resolution fluoroscopic imaging. Large C-arm opening, dual touch screen design, and a multitude of utility functionalities provide surgeons in orthopedics, gastroenterology and urology with an upgraded operation experience.
参考价：
US$100,000–180,000 / unit
Overview
· Mobile flat-panel C-arm X-ray system
· High-performance monocrystalline silicon flat-panel detector
· 152 μm pixel size
· 3.3 lp/mm spatial resolution
· 2-million-pixel image chain
· 85 cm extended C-arm opening
· 3.5 kW X-ray generator
· uFree intelligent dose management
· Dual synchronized touch control panels
· Dual laser positioning lamps
· Suitable for orthopedic, neurological, urological and other surgical procedures
Specifications
| Specification | uMC 560i |
| Product Type | Mobile C-arm X-ray System |
| Manufacturer | United Imaging Healthcare |
| Model | uMC 560i |
| Detector | Monocrystalline Silicon CMOS Flat-panel Detector |
| Detector Size | 21.5 × 21.5 cm |
| Pixel Size | 151.8 μm / 152 μm |
| Matrix Size | 1416 × 1420 |
| Spatial Resolution | 3.3 lp/mm |
| DQE | 75% |
| Dynamic Range | 96 dB |
| Digitization Depth | 16 bit |
| Field of View | 21.5 × 21.5 cm |
| X-ray Tube | Stationary Anode |
| Tube Voltage | 40–110 kV |
| Maximum Power | 3.5 kW |
| Pulsed Fluoroscopy Current | 0.1–30 mA |
| Imaging Modes | Pulsed Fluoroscopy, Spot Fluoroscopy, Digital Radiography |
| SID | 107.5 cm |
| C-arm Opening | 85 cm |
| Display | 34-inch TFT color display |
| Control | Touch Panel / Dual Touch Control |
| Dose Management | uFree Dose Management |
| DICOM | Supported |
| Image Post-processing | 2D Image Post-processing |
| Anti-scatter Grid | Removable |
| Laser Positioning | Dual Laser Positioning Lamps |
| Footswitch | Wireless Footswitch, optional |
Product Details

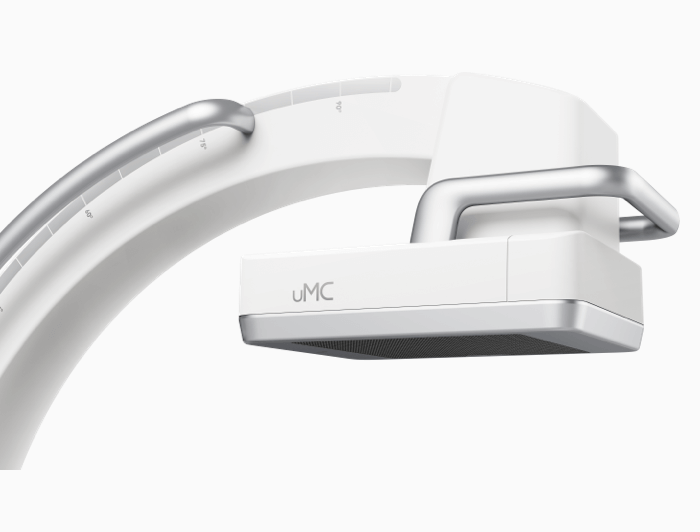

1. RealSense Detector
The RealSense monocrystalline silicon detector uses a chip-grade active matrix array and 152 μm pixels to improve signal-to-noise ratio and support high-definition imaging at lower radiation dose.
2. Two-Million-Pixel Image Chain
The uRealView imaging chain provides approximately 2 million pixels, increasing image information and helping display fine anatomical structures with reduced image distortion.
3. High-Resolution Imaging
With 3.3 lp/mm spatial resolution, the system supports multi-level image magnification while maintaining visualization of fine anatomical details.
4. uFree Dose Management
The uFree Dose Management system combines patient-position recognition, exposure parameter adjustment, metal-artifact reduction and motion detection to optimize image quality while managing radiation dose.

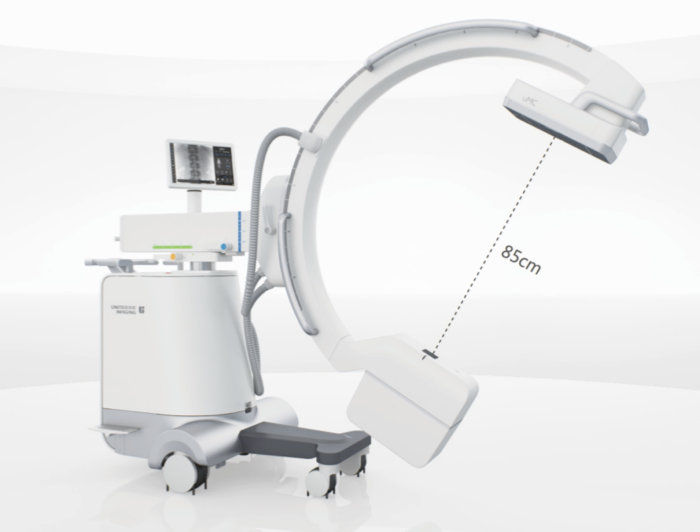

5. 85 cm C-arm Opening
The enlarged 85 cm C-arm opening provides greater operating space around the patient, which is particularly useful during orthopedic and other surgical procedures.

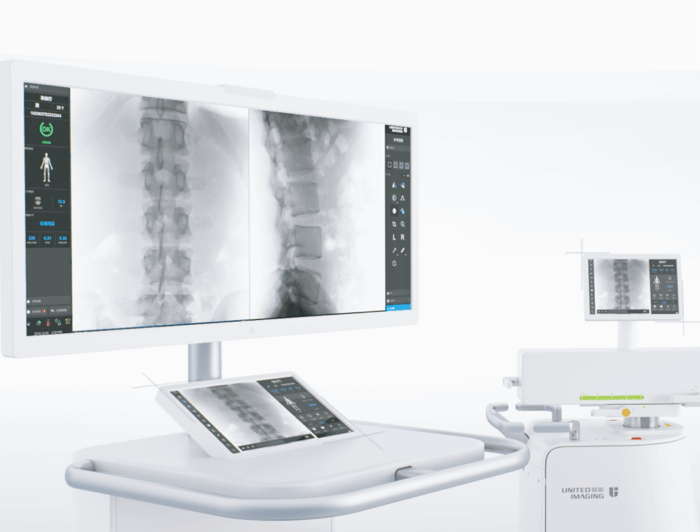

6. Intelligent Workflow
uFree Protocol Selection automatically adjusts imaging parameters according to the selected clinical application and supports different imaging modes. Dual synchronized touch panels also allow more convenient system control.
7. Surgical Applications
The uMC 560i is designed for intraoperative imaging, including:
· Orthopedic Surgery
· Spine Surgery
· Neurological Surgery
· Urological Procedures
· Pain Management
· Pediatric Procedures
· Critical Care

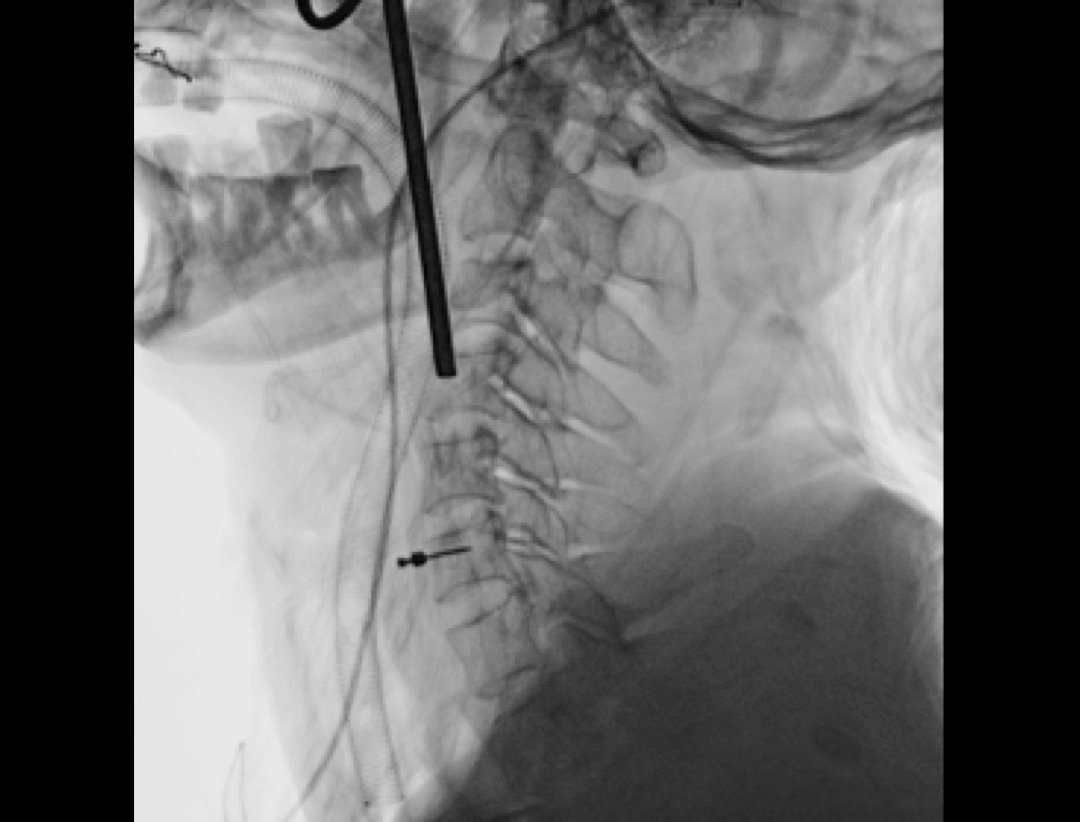

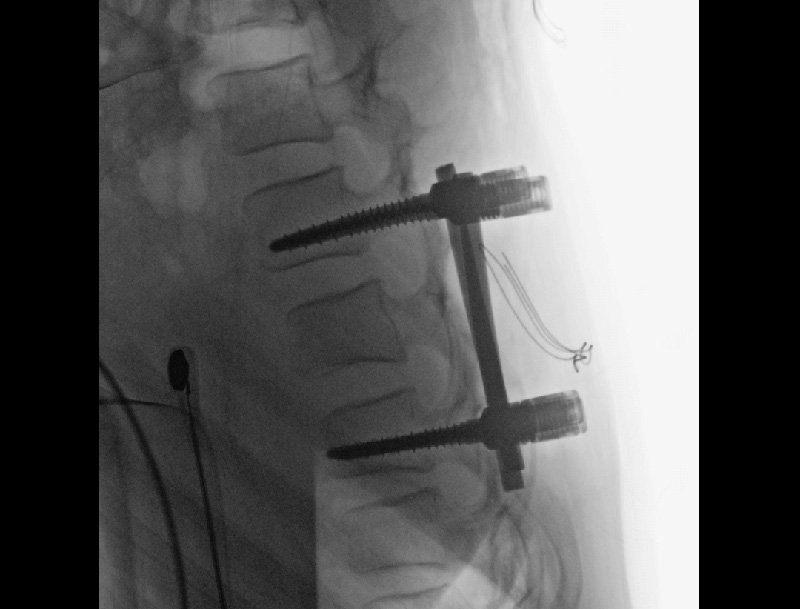

Typical applications demonstrated by United Imaging include anterior cervical discectomy, pedicle screw fixation, percutaneous kyphoplasty and percutaneous transforaminal endoscopic discectomy.
