LEPU Arthroscope
Introduction:
Optical cable interface and camera interface can be matched with other brands; A direction indicator in the field of view, to determine the direction during operation;
参考价：
＄147
Overview
| Item | Specification |
| Product Type | Orthopedic Endoscope (Arthroscope) |
| Outer Diameter Options | 2.7mm / 3mm / 4mm |
| Viewing Angle | 30° |
| Protective Lens Material | Sapphire lens |
| Optical Components | German optical glass + fiber optic light cone |
| Scope Body Material | Imported medical stainless steel (coating-free) |
| Valve Performance | 360° rotatable, maintenance-free, anti-winding |
| Matching System | Orthopedic power shaver system, perfusion equipment |
| Interface Compatibility | Universal light guide & camera ports, multi-brand compatible |
Specifications
长(cm) | 宽(cm) | 高(cm) | 体积(cm³) | 重量(g) |
20 | 10 | 8 | 1600 | 500 |
Product Details
1. Main Product Banner & Core Selling Points
Product Slogan: Orthopedic Minimally Invasive Arthroscope | Sapphire Wear-resistant Lens | 360° Maintenance-free Rotary Valve | Multiple Sizes Available
30° Arthroscope Main Product
2. Basic Product Information
· Product Name: Medical Arthroscope
· Application Department: Orthopedics
· Optional Diameter Sizes: 4mm / 3mm / 2.7mm
· Viewing Angle: 30°
· Matching Equipment: Compatible with power shaver system & perfusion equipment
· Interface Compatibility: Optical cable port and camera port fit mainstream third-party brand devices
3. Product Gallery

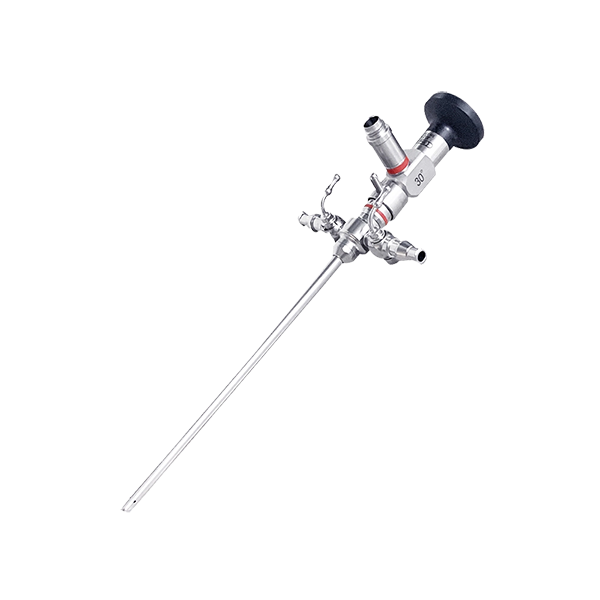

Full Structure Shot
4. Core Product Features
Premium Optical System, Clear & Durable Imaging
Built-in sapphire protective lens, scratch-proof and never worn even after long-term repeated surgeries
Adopts German optical glass, high-quality fiber optic and light cone
Patented rod-lens optical technology delivers ultra-clear surgical field of view
Direction indicator inside the field of view helps surgeons quickly judge orientation during operation
Imported Stainless Steel, Corrosion Resistant & Easy Sterilization
Scope body and surgical instruments are made of imported medical stainless steel with no coating, outstanding anti-corrosion performance
Integrated stainless steel valve with maintenance-free design, 360° free rotation prevents pipeline tangling during surgery
Stable mechanical structure, low failure rate and long service life
Wide Cross-brand Compatibility
Universal optical fiber interface and camera interface design. No need to replace your existing hospital equipment; perfectly compatible with other brands’ cold light sources and camera hosts to cut procurement costs.
Complete Supporting Instrument Kit
A full set of supporting orthopedic surgical instruments is available for one-stop matching of all kinds of minimally invasive joint surgeries without extra separate purchases.
5. Full Product Specifications Table
| Model | Field of View（°） | Specification |
J0200G | 90 | 0° Ø4mm (B) x 175mm (A) |
J0230G | 90 | 30° Ø4mm (B) x 175mm (A) |
| J0270G | 90 | 70° Ø4mm (B) x 175mm (A) |
6. Clinical Applications
This arthroscope is specially developed for orthopedic minimally invasive surgery, to be used together with power shaver and perfusion equipment for the following procedures:
· Minimally invasive knee joint surgery
· Repair surgeries for shoulder, ankle, wrist and other limb joints
· Minimally invasive diagnosis, debridement and reconstruction of joint injuries
7. Craft & Material Advantages
1. Optical Tip: Sapphire lens + German optical lens, high light transmittance, anti-scratch, no fogging or blurring after long-term use
2. Scope Tube & Valve: One-piece forged stainless steel without electroplating coating, no peeling or rust after high-temperature sterilization, excellent biocompatibility
3. Light Transmission System: Original fiber optic cable with low light attenuation, uniform brightness without dark areas in surgical vision
4. Mechanical Valve Assembly: No vulnerable sealing parts, maintenance-free design reduces hospital after-sales maintenance costs and extends service life
8. Inquiry & Purchase Section
Purchase Notice
1. Product registration certificates and supply qualifications vary from country to region. Please contact our sales team to confirm local compliance documents before ordering.
2. Separate quotations are available for single arthroscope, full instrument sets and supporting consumables.
3. Contact Email: marketing@lepu-medical.com
4. We support bulk orders and can provide complete bidding documents for hospital tender projects.
9. Bottom Disclaimer
This product belongs to Class II medical device, only available for purchase by medical institutions and qualified medical device distributors. It must be operated with professional imaging system, cold light source and power equipment by surgeons with professional orthopedic endoscopic operation qualifications. Product registration and availability differ by country.
